Model & Capacity for the V-CT-SF Series

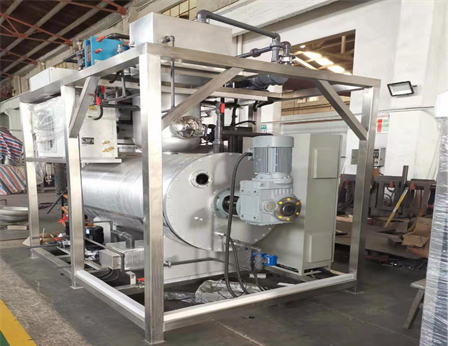

V-CT-SF series crystallizer adopts a jacketed heat exchanger to exchange heat with the material. A mechanical scraper is installed in the middle of the evaporation chamber to stir the dry material to obtain a solid material with lower moisture content. The system is suitable for long-summer time, high-temperature areas, or areas with high operation requirements.
|
Model (L/d) |
Evaporative
Power (L/h) |
Installed Power
(kw) |
Consumption
(w/l) |
Outline
dimension (L x B x H) |
|
V-D-500 |
25 |
26.0 |
600 |
2.0×1.4×2.3 |
|
V-CT-SF-1000 |
45 |
33.0 |
240 |
2.7×1.6×2.6 |
|
V-CT-SF-2000 |
83 |
50.0 |
220 |
4.0×2.0×3.2 |
|
V-CT-SF-3000 |
125 |
57.0 |
220 |
4.5×2.3×3.6 |
|
V-CT-SF-5000 |
250 |
120.0 |
220 |
7.1×4.5×3.5 |
|
V-CT-SF-10000 |
500 |
220.0 |
220 |
12.0×4.5×3.5 |
