Ball Valve : 3-pcs Casting Ball Valve Full Port. Mounting Pad, 2000-1500 WOG, High Performance
(KV-080,KV-081, KV-081-L,KV-082(Bracket Mount Type)
(KV-080F, KV-081F, KV-081F-L, KV-082F (Bracket Mount Type / Fire Safe Type)
FEATURES :- Fire Safe: Design Approved
- Build-in ISO 5211 Mounting Pad for Easy Automation
- Anti-Static Devices for Ball-Stem-Body
- Blow-out Proof Stem
- Pressure Balance Hole in Ball Slot
- Pre-load 2 Belleville Washers to Self-adjust Packing
- Double Stem Sealing Acc, to TA-LUft
- Casting Approved by TUV AD 2000-Merkblatt W0
APPLICABLE STANDARDS :
- Design : MSS SP-110 , 2000 WOG for 1/4" ~ 1", 1500 WOG for 1-1/4" ~ 2"
- Fire Safe: API 607 5th 2005, ISO 10497
- Pipe Thread KV-080: ASME B1.20.1, DIN 2999/259, ISO 228/1, JIS B 0203, ISO 7/1
- Butt Weld KV-081: ASME B16.25 (ØB2 Sch 80)
- Extended But Weld KV-081-L: ASME B16.25 (ØB2 Sch 80)
- Socket Weld KV-082: ASME B16.11
- Inspection & Testing : MSS SP-110
*Materials for FIRE-SAFE Models

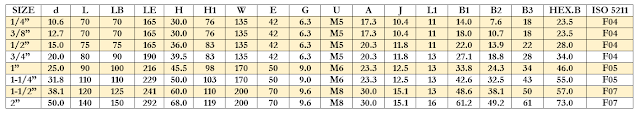

Unit : mm
