Aerator Assembly
11. Propeller Installation

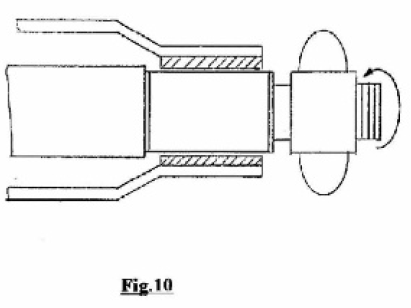

A. Put a large screwdriver through the air intake holes and the universal joint to keep the shaft from turning. Be careful not to damage the grease zerk in the U-joint. (Fig. 10)
For more information or enquiry, please contact Environmech Sdn. Bhd.
Note: Apply anti-seize compound (for example grease) to all threaded areas.
B. Screw the propeller on in a clockwise direction. Tighten the propeller with approximately 30 foot-pounds of torque. The diffuser is now ready to be installed.
12. Diffuser Installation
A. Put a large screwdriver through the air intake hole and U-joint to keep the shaft from turning. (Fig. 11)
A. Put a large screwdriver through the air intake hole and U-joint to keep the shaft from turning. (Fig. 11)
Note: Take care not to damage the grease zerk in the U-joint.
B. Tighten the diffuser to seat firmly against the propeller with approximately 40 foot-pounds of torque.
C. Remember to remove the screwdriver from the air intake holes and U-joint.
